大同端子製造株式会社 製品紹介

Product製品紹介

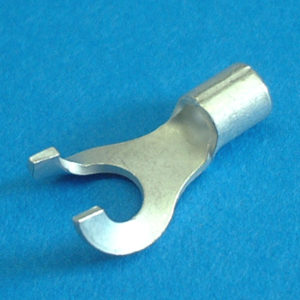

裸圧着端子 インターロック形端子 公称断面積1〜3sq
YT形
デジタルカタログで見る(PDF)

デジタルカタログで見る(PDF)
YT形
ul sa
※表に丸印がある製品に適用されます。
インターロック形端子

RoHS指令対応品

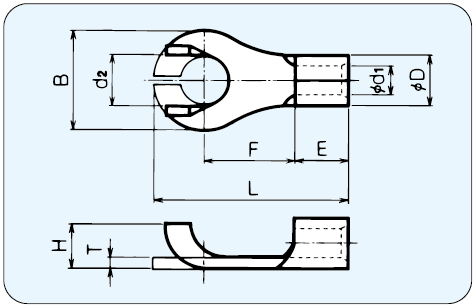

呼びULCSA[right]φd2[right]B[right]H[right]L[right]F[right]E[right]φD[right]φd1[right]T[center]適合電線範囲(㎜)[center]適合電線範囲(㎜2)[center]適合電線範囲(AWG)適合工具一箱入数
YT1-33.25.83.414.16.64.53.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
YT1-3.53.76.54.014.16.64.53.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
YT1-S44.37.54.315.57.54.53.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
YT1-44.38.04.315.57.54.53.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
YT1-S55.38.04.320.210.04.53.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A500(100×5)
YT1-55.311.56.720.210.04.53.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A500(100×5)
YT1-66.411.56.820.210.04.53.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A500(100×5)
YT2-3M3.26.53.112.55.14.54.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
YT2-33.26.03.315.68.34.54.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
YT2-3.5M3.76.53.212.55.14.54.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
YT2-3.53.76.53.415.68.34.54.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
YT2-S44.37.54.516.58.34.54.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
YT2-44.38.54.516.58.34.54.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
YT2-55.312.06.921.711.54.54.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A500(100×5)
YT2-66.412.06.821.711.54.54.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A500(100×5)
YT3-44.39.55.019.58.86.35.63.41.01.82~2.892.63~6.6412-10*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、PALM-125A500(100×5)
YT3-55.39.55.219.58.86.35.63.41.01.82~2.892.63~6.6412-10*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、PALM-125A500(100×5)
YT3-66.412.07.222.410.26.35.63.41.01.82~2.892.63~6.6412-10*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、PALM-125A400(100×4)
