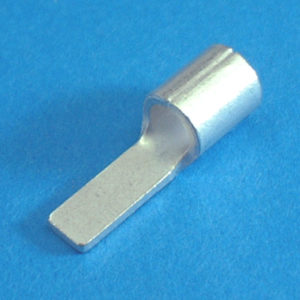

裸圧着端子 板状形端子 公称断面積0.5〜8sq
AP形
デジタルカタログで見る(PDF)

デジタルカタログで見る(PDF)
AP形
ul sa
※表に丸印がある製品に適用されます。

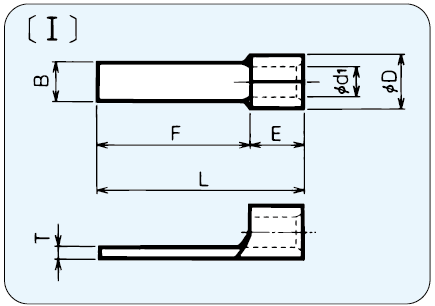

板状形端子

RoHS指令対応品

呼びULCSA[right]曲げ[right]B[right]L[right]F[right]E[right]φD[right]φd1[right]T[right]H[center]適合電線範囲(㎜)[center]適合電線範囲(㎜2)[center]適合電線範囲(AWG)適合工具一箱入数
AP-0.51.611.07.04.02.31.20.50.5~0.80.2~0.524-20DS031、DH-1B1000(100×10)
AP-1.25S1.014.09.74.33.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-1.25N81.212.38.04.33.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-1.25M2.117.012.74.33.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-1.253.117.012.74.33.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-1.25-92.113.39.04.33.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-1.25-9B3.113.39.04.33.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-1.25-102.114.510.24.33.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-1.25L2.121.016.74.33.41.70.80.57~1.440.25~1.6522-16*DS031、*DS-H18、*DH-1B、*DS-A5、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-2M2.117.012.74.34.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-23.117.012.74.34.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-2-92.113.39.04.34.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-2-9B3.113.39.04.34.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-2L2.121.016.74.34.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-2LB3.221.016.74.34.22.30.81.14~1.821.04~2.6316-14*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、*DS-Hi34S、PALM-125A、PALM-12A1000(100×10)
AP-5.53.520.714.46.35.63.41.01.82~2.892.63~6.6412-10*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、PALM-125A500(100×5)
AP-5.5L3.524.518.26.35.63.41.01.82~2.892.63~6.6412-10*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、PALM-125A500(100×5)
AP-5.5B4.519.313.06.35.63.41.01.82~2.892.63~6.6412-10*DS-H18、*DS-H214、*DH-1B、*DS-A5、*DS-E14、PALM-125A500(100×5)
AP-84.521.313.08.37.14.51.22.89~3.656.64~10.528*DS-H18、*DS-H214、*DS-E14500(100×5)
