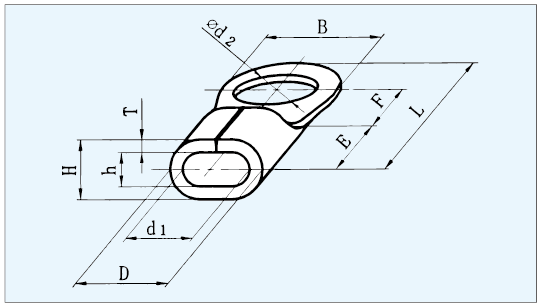

| 呼び | CRUUS | 曲げ | [right]φd2 | [right]B | [right]L | [right]F | [right]E | [right]D | [right]d1 | [right]H | [right]ｈ | [right]T | [center]適合電線 | 適合工具 | [center]適合ダイス（Kダイス） | 一箱入数 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K8-5 | ○ | ○ | 5.3 | 12.0 | 23.5 | 9.2 | 8.3 | 8.3 | 5.9 | 5.0 | 2.6 | 1.2 | 2×4 ２×5 | *DS-E60、*DS-HO60 | K8用 | 400（100×4） |
| K8-6 | ○ | ○ | 6.4 | 12.0 | 23.5 | 9.2 | 8.3 | 8.3 | 5.9 | 5.0 | 2.6 | 1.2 | 2×4 ２×5 | *DS-E60、*DS-HO60 | K8用 | 400（100×4） |
| K14-S5 | ○ | ○ | 5.3 | 10.0 | 28.5 | 13.5 | 10.0 | 10.8 | 7.8 | 6.0 | 3.0 | 1.5 | 2×6 ２×7 | *DS-E60、*DS-HO60 | K14用 | 200（100×2） |
| K14-S6 | ○ | ○ | 6.4 | 10.0 | 28.5 | 13.5 | 10.0 | 10.8 | 7.8 | 6.0 | 3.0 | 1.5 | 2×6 ２×7 | *DS-E60、*DS-HO60 | K14用 | 200（100×2） |
| K14-S8 | ○ | ○ | 8.4 | 12.0 | 29.5 | 13.5 | 10.0 | 10.8 | 7.8 | 6.0 | 3.0 | 1.5 | 2×6 ２×7 | *DS-E60、*DS-HO60 | K14用 | 200（100×2） |
| K14-5 | ○ | ○ | 5.3 | 12.0 | 29.5 | 13.5 | 10.0 | 10.8 | 7.8 | 6.0 | 3.0 | 1.5 | 2×6 ２×7 | *DS-E60、*DS-HO60 | K14用 | 200（100×2） |
| K14-6 | ○ | ○ | 6.4 | 12.0 | 29.5 | 13.5 | 10.0 | 10.8 | 7.8 | 6.0 | 3.0 | 1.5 | 2×6 ２×7 | *DS-E60、*DS-HO60 | K14用 | 200（100×2） |
| K22-5 | ○ | ○ | 5.3 | 16.5 | 33.4 | 13.8 | 11.4 | 13.2 | 9.6 | 8.5 | 4.9 | 1.8 | 2×8 ２×9 3×8 | *DS-E60、*DS-HO60 | K22用 | 100 |
| K22-6 | ○ | ○ | 6.4 | 16.5 | 33.4 | 13.8 | 11.4 | 13.2 | 9.6 | 8.5 | 4.9 | 1.8 | 2×8 ２×9 3×8 | *DS-E60、*DS-HO60 | K22用 | 100 |
| K22-8 | ○ | ○ | 8.4 | 16.5 | 33.4 | 13.8 | 11.4 | 13.2 | 9.6 | 8.5 | 4.9 | 1.8 | 2×8 ２×9 3×8 | *DS-E60、*DS-HO60 | K22用 | 100 |
| K22-S10 | ○ | ○ | 10.5 | 16.5 | 33.4 | 13.8 | 11.4 | 13.2 | 9.6 | 8.5 | 4.9 | 1.8 | 2×8 ２×9 3×8 | *DS-E60、*DS-HO60 | K22用 | 100 |
| K38-S5 | ○ | 5.3 | 16.0 | 39.0 | 18.0 | 13.0 | 16.0 | 12.3 | 8.7 | 5.0 | 1.8 | 3×8 3×9 3×10 3×11 | *DS-E60、*DS-HO60 | K38用 | 100 | |
| K38-S6 | ○ | 6.4 | 16.0 | 39.0 | 18.0 | 13.0 | 16.0 | 12.3 | 8.7 | 5.0 | 1.8 | 3×8 3×9 3×10 3×11 | *DS-E60、*DS-HO60 | K38用 | 100 | |
| K38-S8 | ○ | 8.4 | 16.0 | 39.0 | 18.0 | 13.0 | 16.0 | 12.3 | 8.7 | 5.0 | 1.8 | 3×8 3×9 3×10 3×11 | *DS-E60、*DS-HO60 | K38用 | 100 | |
| K38-6 | ○ | ○ | 6.4 | 22.0 | 42.0 | 18.0 | 13.0 | 16.0 | 12.3 | 8.7 | 5.0 | 1.8 | 3×8 3×9 3×10 3×11 | *DS-E60、*DS-HO60 | K38用 | 50 |
| K38-8 | ○ | ○ | 8.4 | 22.0 | 42.0 | 18.0 | 13.0 | 16.0 | 12.3 | 8.7 | 5.0 | 1.8 | 3×8 3×9 3×10 3×11 | *DS-E60、*DS-HO60 | K38用 | 50 |
| K38-10 | ○ | ○ | 10.5 | 22.0 | 42.0 | 18.0 | 13.0 | 16.0 | 12.3 | 8.7 | 5.0 | 1.8 | 3×8 3×9 3×10 3×11 | *DS-E60、*DS-HO60 | K38用 | 50 |
| K38-12 | ○ | ○ | 13.0 | 22.0 | 42.0 | 18.0 | 13.0 | 16.0 | 12.3 | 8.7 | 5.0 | 1.8 | 3×8 3×9 3×10 3×11 | *DS-E60、*DS-HO60 | K38用 | 50 |
